Tiltrotators FX

ST28 FX

Precision, Power & Performance

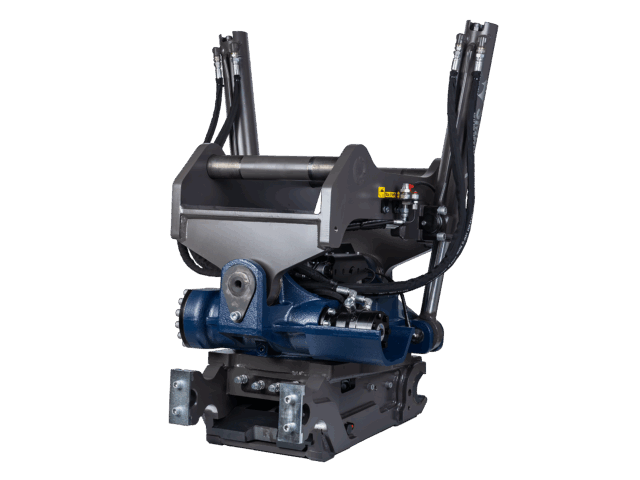

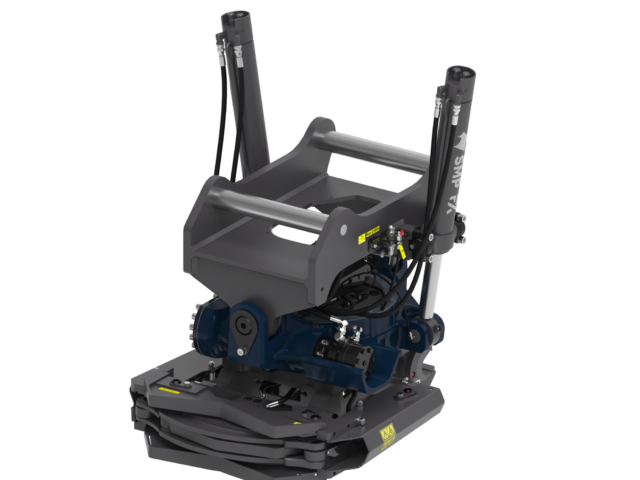

The ST28 FX is designed for excavators weighing between 22 and 28 tons. SMP’s tiltrotators are engineered for uncompromised durability, combining a robust build with a lightweight design that maximizes efficiency and maneuverability. With endless 360° rotation and up to 45° tilt, each unit is equipped with a high standard of features, providing exceptional flexibility and precision for even the most demanding tasks.

With the FX series, the design has been further upgraded with a focus on standardization, reinforcement of key components, and the introduction of innovative new features. These upgrades allow operators to handle a wider range of tasks more efficiently, safely, and reliably—year after year.

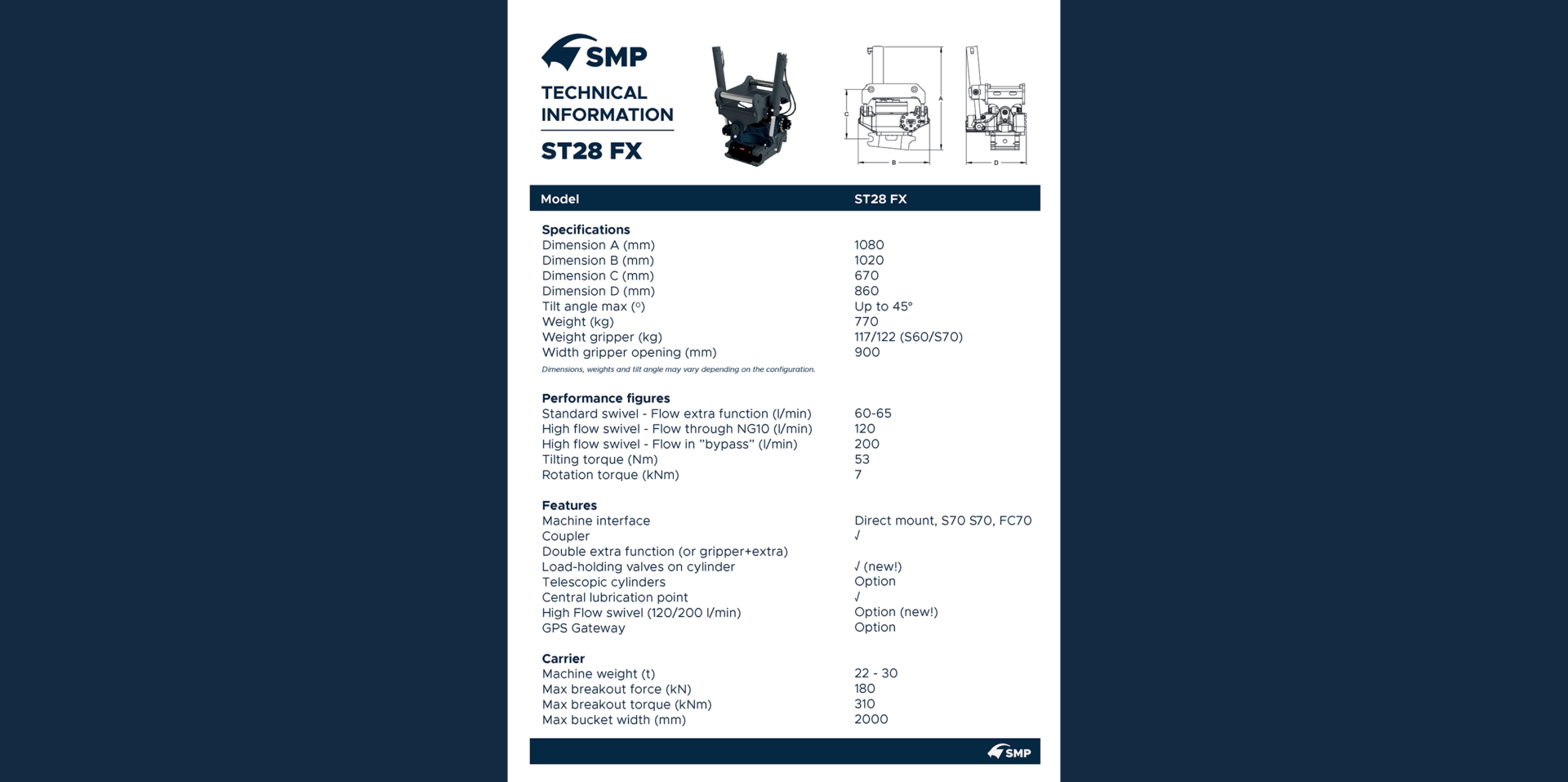

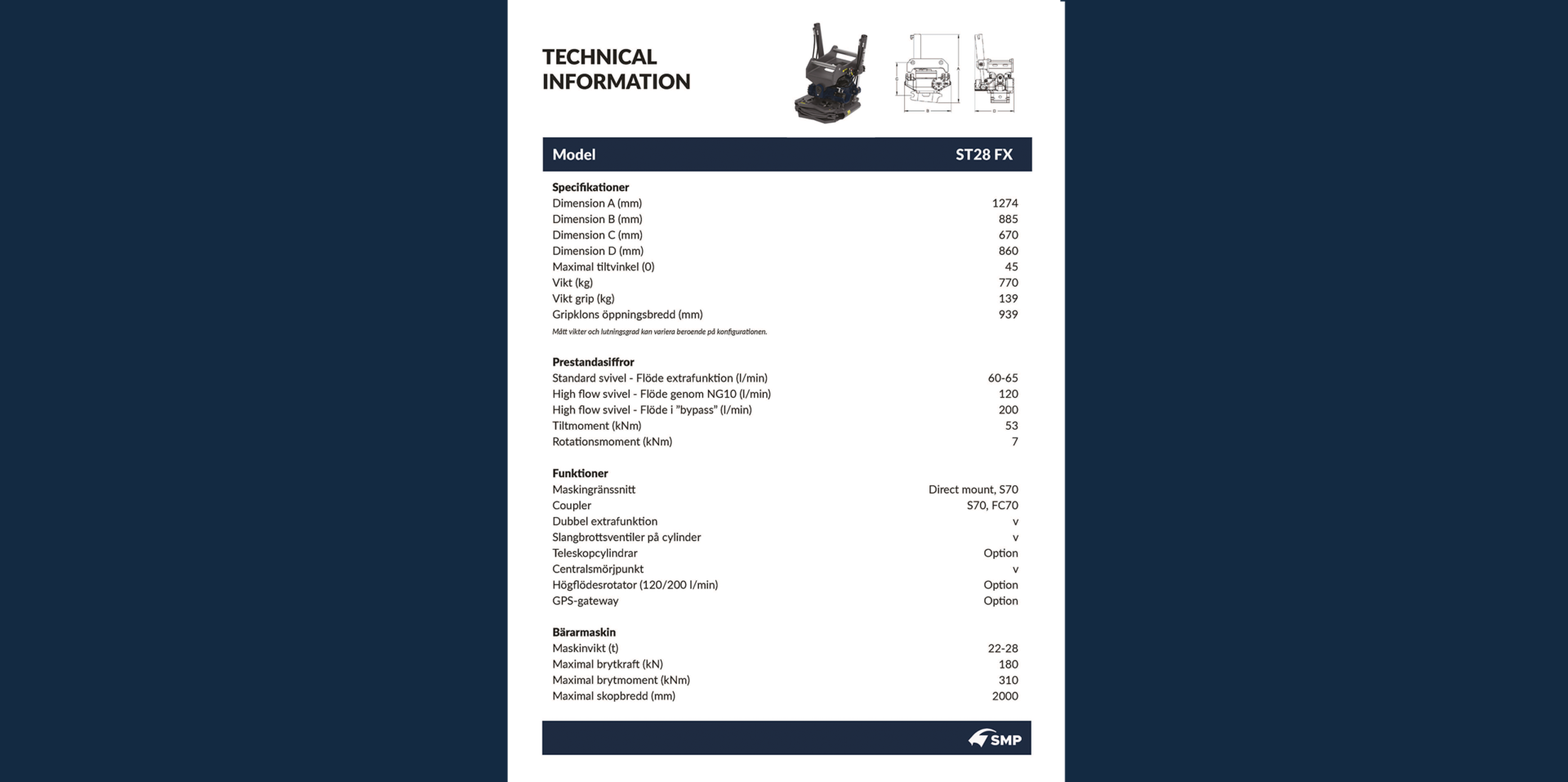

Productinfo_eng_ST28 FX

All FX tiltrotators now have a load-holding valve mounted in the tilt cylinder, which provides increased safety, especially when using pallet forks. The durability of the motor and rotation sensor has been further reinforced to withstand demanding conditions.

Additionally, the introduction of a high-flow swivel allows for the use of large hydraulic attachments, while an optional electrical swivel enables the transfer of up to 8 circuits and CAN bus, which expands functionality for advanced applications.

Versatile Configuration

Adding a grab attachment improves functionality and adaptability.
It supports a wide range of quick hitches, including:
- Symmetrical S-standard, with SMP's proprietary Safelock or Hardlock hitches.
- Open-S, with SMP's fully hydraulic quick hitches FC45 to FC70.

Smart Control Options

Choose from several control systems to suit your machine and workflow:
- 4 or 6-hose solutions for machine-based control.
- 2-hose solutions with integrated proportional control, with optional track/wheel steering. Compatibility with 3D machine guidance (MG/MC).

Efficient Maintenance

Single-point lubrication comes standard, which minimizes downtime and extends the lifespan. It's also compatible with the machine's central lubrication system for seamless integration.
