Facilitates grading

Easy to maneuver

High durability

Buckets

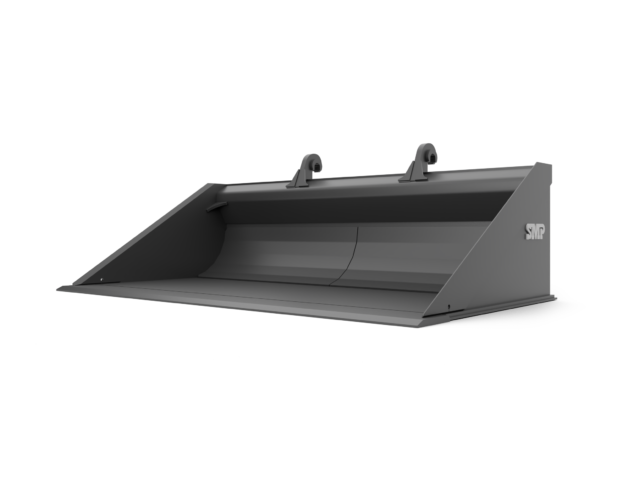

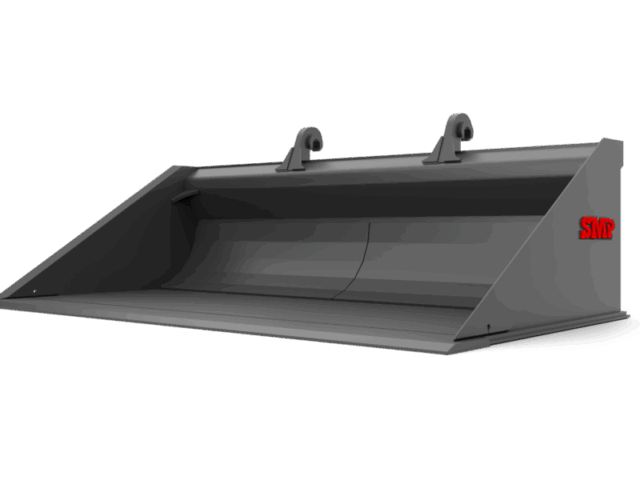

Grading buckets loaders

SMP’s grading buckets are designed for precision work with wheel loaders. The bucket’s long service life and a heavy-duty, robust construction makes them ideal for all types of grading work. The buckets are easy to maneuver and simple to use.

Grading buckets for loaders are available in two models: standard, suitable for most tasks and ground conditions; and heavy duty (HD), developed to withstand wear and tear. Both models are made of highly durable Hardox steel. For more efficient snow clearing, buckets can be equipped with a snow collar.

To technical specification

Standard

Grading bucket designed for precision work with wheel loaders in the 4–20 ton weight class. The standard bucket has a stable, smooth and solid design, which is easy to maneuver and simple to use. For more efficient snow clearing, all models can be equipped with a snow collar.

Heavy Duty

The Heavy Duty grading bucket is designed for precision work with wheel loaders in the 11–31 ton weight class. It is made of heavy duty material to handle the stress and strain that comes with working with machines in the higher weight class range. The Heavy Duty grading bucket has a long, smooth underside with steel wear ribs. It has strong side cutters and a high straight rear edge.

DESIGN AND MANUFACTURING IN ILSBO, SWEDEN

SMP buckets are designed and manufactured in our own factory in Ilsbo, Sweden. We have a long-standing tradition of craftsmanship rooted in our 100-year history. In 1919, the Höglund brothers opened a forging and carpentry workshop, sowing the seed that would become the SMP Parts of today. We are proud to carry the torch and uphold the tradition of craftsmanship and innovation that has permeated the business ever since.

Technical specification

Grading buckets loaders standard

Model Machine Weight (tonnes) Weight (kg) Depth Front steel (mm)
Add to offer cart ? Now you can save all the products you are interested in one place and send to us for a complete quote. You'll find your saved products in the cart i the navigation.
FPL 200 4-5 680 1230 25x200
FPL 220 6-8 750 1230 25x200
FPL 230 8-10 780 1230 25x200
FPL 240 9-10 810 1430 25x200
FPL 250 11-12 850 1430 25x200
FPL 260 11-13 880 1430 25x200
FPL 270 13-15 920 1540 25x200
FPL 280 18-20 950 1540 30x270
FPL 290 20 980 1540 30x270
FPL 300 20 1020 1540 30x270

Grading buckets loaders heavy duty

Model Machine Weight (tonnes) Weight (kg) Depth Front steel (mm)
Add to offer cart ? Now you can save all the products you are interested in one place and send to us for a complete quote. You'll find your saved products in the cart i the navigation.
FPL 260HD 11-13 1110 1530 30x270
FPL 270HD 13-15 1180 1530 30x270
FPL 280HD 20 1220 1530 30x270
FPL 290HD 20 1240 1530 30x270
FPL 300HD 20-23 1360 1530 30x270
FPL 310HD 23 1400 1530 30x270
FPL 340HD 26-31 2150 1930 40x300

We reserve the right for eventual errors.
